Premier access control systems for ultimate security and efficiency.

R&S offers a variety of access control solutions tailored to suit the requirements of residents, businesses, and commercial settings. Whether you’re overseeing a busy commercial establishment, monitoring a seldom-visited area, or enhancing security and your private property, R&S provides a solution that guarantees consistent performance and maximizes the value of your investment. Rest assured, these systems are designed to deliver dependable service for years to come!

Manufacturers R&S Services & Installs

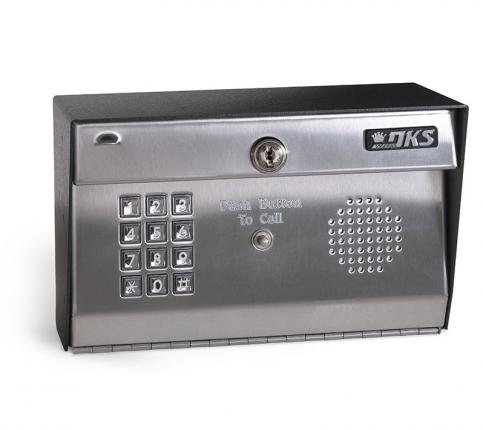

Single Family Intercom System

For homeowners who want to use their telephone as an intercom to speak to a guest at a front door or gate, and for small businesses who want to control access through a single door or gate – without the necessity to pay for an additional telephone line. Visitors are easily identified by voice communication and can be granted or denied access directly from a touch-tone telephone. Available in surface mount, flush mount and wall mount.

Features
  • Distinctive double ring identifies visitor calls from regular calls.
  • Call waiting.
  • Call forwarding.
  • 3 preprogrammed call out telephone numbers.
  • “Do Not Disturb” time zone.
  • Hold open time zones.
  • Built-in time clock.
  • Entry code time zone.
  • “Flash” entry code.
  • LED lighted faceplate.
  • 2 relays for door/gate control.
Specifications
  • Hands free, full duplex digital audio circuit.
  • Connects in series with the residential phone line. By-pass switch provided.
  • EEPROM Memory Chip.
  • Stores up to 3 call forwarding numbers.
  • Full duplex communication.
  • 50, 4-digit entry codes.
  • 24 VAC, 20 VA (250 ma) power transformer provided.
  • FCC (US): DUF6VT-12874-OT-0
  • DOC (CAN): 1736 4507 A
  • Complies with UL 294; ETL Listed.
  • Surface mount dimensions: 6.13″H x 10″W x 5.25″D.
  • Flush mount dimensions: 9.13″H x 11.88″W x 4.5″D.
Options

Surface or flush mount.Stainless steel housing (surface mount only).

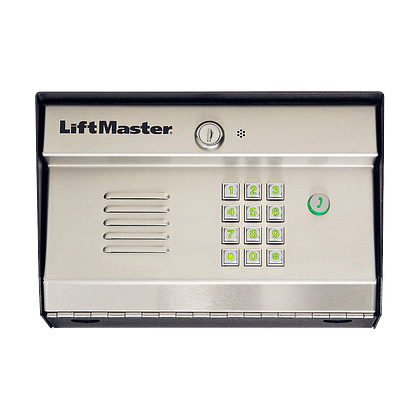

Telephone Intercom and Access Control System

  • Voice Communications and Access Control for a Single Family Home.
  • Value Priced, But Feature Rich: Call Forwarding, Call Waiting, Party Mode, Do Not Disturb, and Auto-Call Features.
  • Easy to Program, No Software Required.
  • No Phone Bill When You Use Intercom Mode.
Features
  • Easy to See and Use With Backlit Call Button and Keypad.
  • Easy Keypad Programming No software needed.
  • Landline or Intercom Uses Existing Landline or can be set up as Intercom with no additional monthly expenses.
  • Durable Design Metal Keypad with Green Backlighting for Increased Visibility at Night.
  • Multiple Ways to Connect
    • Intercom
    • POTS (Telephone Line)
    • Filtered DSL
Specifications
  • Local User Capacity: 200
  • Relay Output: 2 (1 Primary, 1 Auxilliary)
  • Dimensions: 6.25″H x 10″W x 5.25″D
  • Max Number Of Gates/Doors of control (Each): 2
  • Connectivity: Intercom/POTS/Filtered DSL using Keypad
  • Operating Temperature: -4°F to 149°F (-20°C to 65°C)

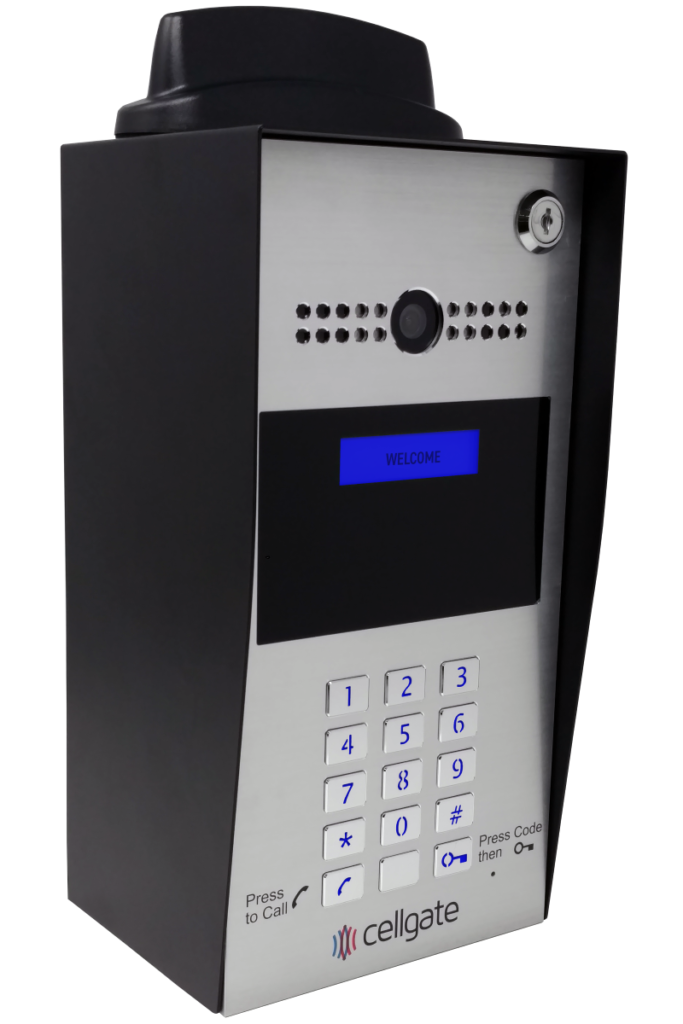

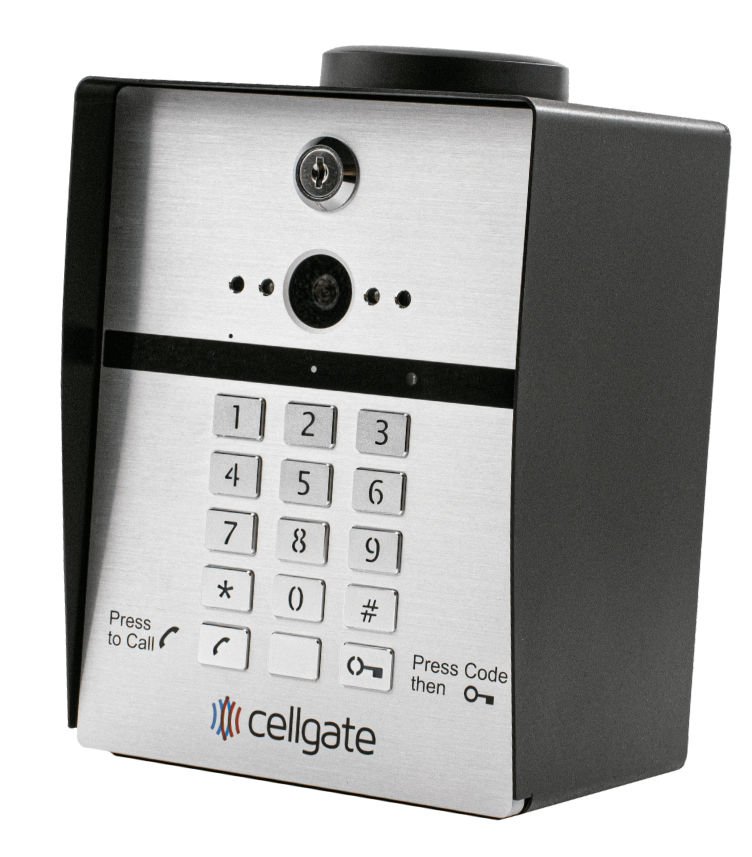

Advanced Telephone Entry

  • For Single Family applications, supports a single call group.
  • Fewer stranded visitors: when visitors arrive, system calls up to 9 numbers in three tiers.
  • Integrates an Optional External Camera to allows for a different view of visitors.
  • Prop Open Notifications if gate has been left open for longer than 3 minutes
  • Works with Verizon & AT&T Networks
  • Powered by easy-to-use and feature-rich TrueCloud™ web portal
  • Voice Mail Intelligence [VMI] system ignores call when it reaches voice mail and continues call group
Hardware
  • Works on a Verizon or AT&T LTE cellular network.
  • Full numeric keypad – Up to 5,000 local codes and 64,000 non-local codes. Unique access codes can be provided to visitors on a long term, limited use window or temporary use basis, and can be set up in < 60 seconds via the CellGate app or TrueCloud web portal.
  • Includes one Wiegand 26-bit input for card reader, keypad or wireless remotes.
  • Built-in camera takes still pictures when someone utilizes the keypad, calls to gain access, or can be taken on demand via the CellGate app.
  • Optional add-on external camera to capture secondary views allows you to capture visitor photos from a 2nd angle, to capture vehicle details, license plate info., etc.
  • Hardware Dimensions for W410 are Height: 8.3″, Width: 6.4″, Depth: 4.7″ to 5.5″ – will fit most installation locations.
  • (Optional) Integrates with an OmniPoint Multi-Point Access Control Solution or with a Watchman WXP Wiegand Expansion Panel. Expands entry point management at gate to other access points on the property. Entry points using fobs/card readers can also be controlled by the TrueCloud portal and CellGate app.
  • (Optional) Solar power kit available. Allows for use in environments where traditional electric power is not available.
Voice
  • Full voice call functionality from the gate – Voice calls allow tenants to screen visitor(s) prior to granting access.
  • Ability to auto-call up to 9 voice only numbers in 3 tiers – Increases the likelihood your visitor reaches someone to grant entry.
  • VMI – VoiceMail Intelligence.  Watchman W410 recognizes when a voice call reaches voice mail instead of a live person, and moves on to the next number in the call group.
  • Ensures a voice caller at the gate can reach a live person. Fewer stranded visitors.
  • No app needed to receive calls from visitors at the gate.
  • Makes granting access simple.
App
  • Download the Cellgate app:
  • Gate/entry point can be controlled remotely from the CellGate app. Ultimate convenience. Control your gate/entry point from wherever you are.
  • Open or close the gate remotely, set up a hold open period and take photos of gate area on demand–all from the CellGate app. Better security, convenience.
  • Push notifications can be sent via text or email with photos on all access attempts. Better security, know instantly who came/went on your property, and when.
  • Gate/door sensor notifies you if gate has been left open longer than 3 minutes (prop open notification). Better security, gate cannot be left open inadvertently.
  • CellGate App works on both iOS and Android smart phones. Works with majority of smart phones.
Portal
  • Entire system can be managed through the TrueCloud™ web portal, hosted by Microsoft Azure. Simple, robust administration.  New users, call groups, access codes, scheduled openings/closures and notification options can be programmed via the TrueCloud™ web portal.  Allows for better security records with event logs and picture history.
  • Photos of all access attempts are stored in TrueCloud, even if user doesn’t want photo notifications sent to their smart phone. Can review historical photos and all access attempt transaction data, as needed.
  • The W410, an external camera, an OmniPoint Solution or a Watchman WXP Expansion Panel can all be controlled by the TrueCloud web portal or the CellGate app.  Makes a property’s security administration simple since all products are controlled by the same administrative system and app.

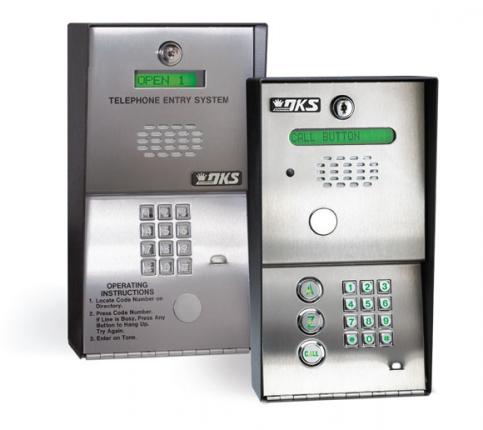

User-friendly Integrated Design Features

For applications that have limited space. Can be used in residential as well as commercial applications. Visitors are easily identified by voice communication and can be granted or denied access directly from a touch-tone telephone. The 1802 Standard is best suited for applications that do not require a directory, or in applications where a separate directory exists. The DKS 1802-EPD with built-in Electronic Programmable Directory eliminates the need for external or add-on directories.

Features
  • 1802 Standard: 600 phone number memory. Single-line programming display uses super-twist LCD with 5/16-inch (7.9 mm) characters. Indicates door gate has been opened.
  • 1802-EPD: 100 name and number memory capacity. Built-in A-Z scroll buttons and CALL button. Single-line electronic directory uses super-twist LCD with 5/16-inch (7.9 mm) characters.
  • Programmable directory codes (1-4 digits).
  • 16-digit dialing
  • Two special inputs can be programmed for relay activation or to dial out a preprogrammed phone number.
  • 5-digit entry codes for special needs.
  • LED lighting illuminates keypad.
  • Built-in time clock.
  • Hold open time zones.
  • Entry code time zones.
  • “Flash” entry codes.
  • Built-in postal lock provision.
Specifications
  • EEPROM Memory Chip.
  • Full duplex communication.
  • 4-digit entry codes; 1802 max. of 1000; 1802-EPD max. of 100.
  • Six, 5-digit entry codes.
  • 16 VAC, 20 VA (250 ma) power transformer provided.
  • Ringer equivalence: 0.0 A.
  • Jack type: RJ11C or W.
  • FCC (US): DUF6VT-12874-OT-0
  • DOC (CAN): 1736 4507 A
  • Complies with UL 294; ETL Listed.
  • Surface mount dimensions: 12″H x 6.5″W x 5″D.
  • Flush mount dimensions: 14″H x 8.375″W x 3.25″D.
Options

Surface or flush mount.

1802-111 Post mount kit required for post mounting.

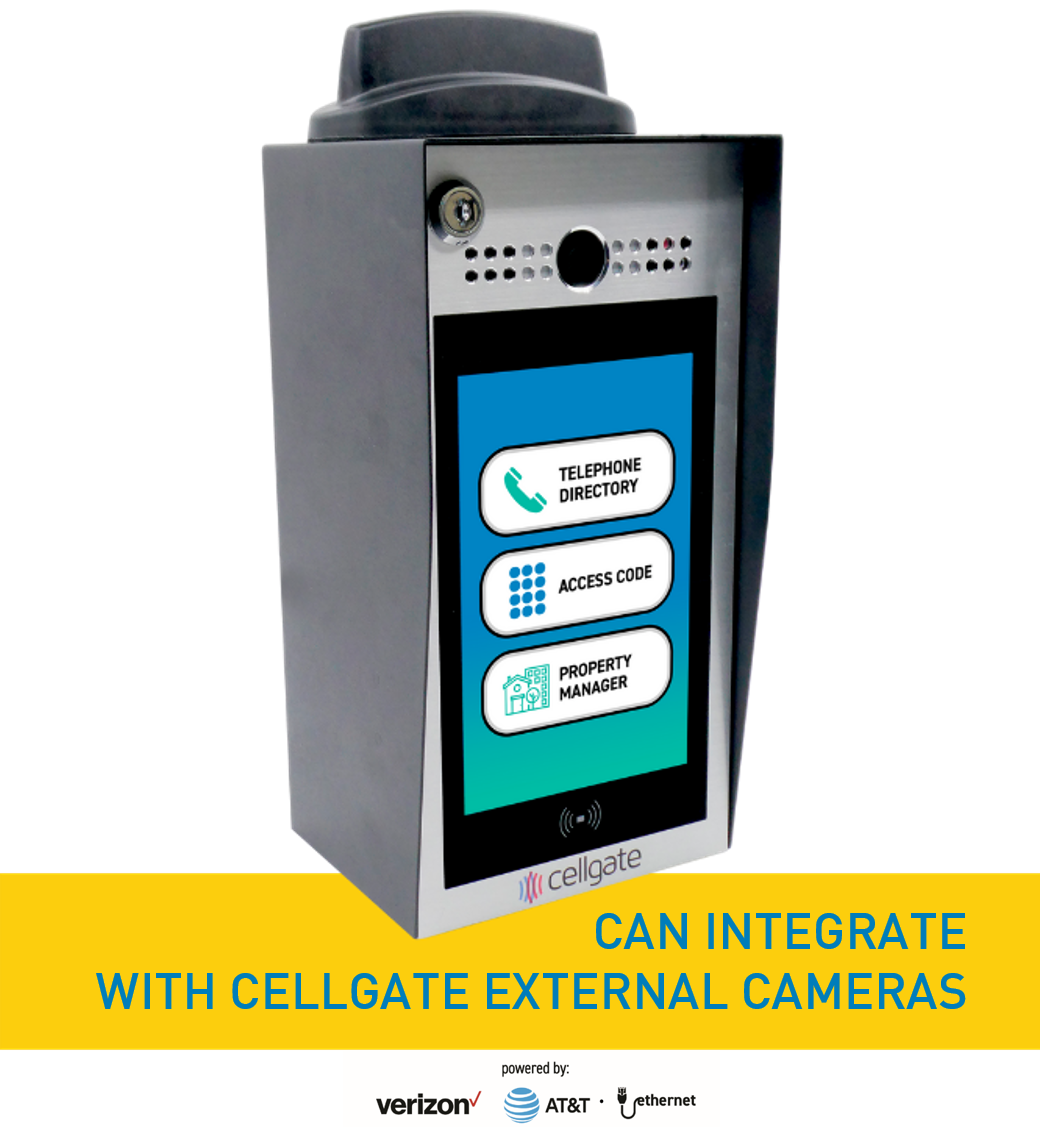

Advanced Telephone Entry, Visitor Management & Access Control w/Live Streaming Video

  • Live Streaming Video – Provides live streaming video of visitors at the gate
  • Fewer Stranded Visitors: when a visitor arrives, the system calls up to 6 app video contacts & 3 voice only lines (most competitors can only call a single voice line)
  • Up to 3 External Cameras to allow for multiple photo views of visitors
  • Prop Open Notifications if gate has been left open for longer than 3 minutes
  • Verizon & AT&T Networks
  • VMI – Voice Mail Intelligence system ignores call when it reaches voice mail and continues call group
Video & Voice
  • Receive live streaming video of visitors at the gate on your smart phone app. Simultaneously see and speak to visitors.
  • Full voice call functionality from the gate. Voice calls allows tenants to screen visitor prior to granting access.
  • Ability to auto-call up to 6 app video contacts and 3 voice only numbers. Increases the likelihood your visitor reaches someone upon visiting.
  • No app needed to receive voice only calls from visitors at the gate. Makes granting access simple.
  • VMI – VoiceMail Intelligence.  System recognizes when a voice call reaches voice mail instead of a live person, and moves on to the next number on the call list. Ensures a visitor at the gate can reach a live person. No stranded visitors.
App
  • Download the Cellgate app:
  • Gate/entry point can be controlled remotely from the CellGate app. Ultimate convenience. Control your gate/entry point from wherever you are.
  • Open or close the gate remotely, set up a hold open period and take photos of gate area on demand–all from the CellGate app. Better security, convenience.
  • Push notifications can be sent via text or email with photos on all access attempts. Better security, know instantly who came/went on your property, and when.
  • Gate/door sensor notifies you if gate has been left open longer than 3 minutes (prop open notification). Better security, gate cannot be left open inadvertently.
  • CellGate App works on both iOS and Android smart phones. Works with majority of smart phones.
Hardware
  • Full numeric keypad – Up to 5,000 local codes and 64,000 non-local codes. Unique access codes can be provided to visitors on a long term, limited use window, or temporary use basis — and can be set up by designated users in < 60 seconds via the TrueCloud™ web portal.
  • Includes one Wiegand 26-bit input. Ideal for locations where these devices are utilized. Can be used with properties that provide RFID/proximity cards to tenants.
  • Built-in camera allows for live streaming video of visitors at the gate.  It captures still pictures when someone utilizes the keypad or calls to gain access, and can be taken on demand via the CellGate app. Better security—video and/or photos allow tenants to visually confirm visitor identity.
  • Backlit LCD Display and keypad. Allows for easy viewing at night or in low light environments.
  • Pedestal mount or recessed mount options.  Hardware dimensions for the W450 are Height: 11.9″, Width: 6.1″, Depth: 4.7″ to 5.5″. Aesthetics – select the option ideal for the install environment.
  • (Optional) Up to 3 add-on external cameras to capture multiple views of access point. Allows property management to capture visitor photos from a 2nd angle, to capture vehicle details, license plate info, etc.
  • (Optional) Integrates with Watchman WXP Wiegand Expansion Panel. Ideal for commercial use, expands entry point management at gate to other access points on the property that may use fobs/card readers/RFID.
  • (Optional) Solar power kit available. Allows for use in environments where traditional electric power is n/a.
Portal

Entire system can be managed through the TrueCloud™ web portal, hosted by Microsoft Azure. Simple, robust administration.  New users, call groups, access codes, scheduled openings/closures, photos, and access attempt time & date details can all be set up/reviewed via the TrueCloud™ web portal.  Allows for better security records with event logs and picture history.

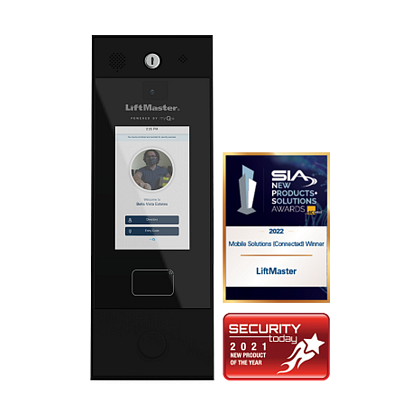

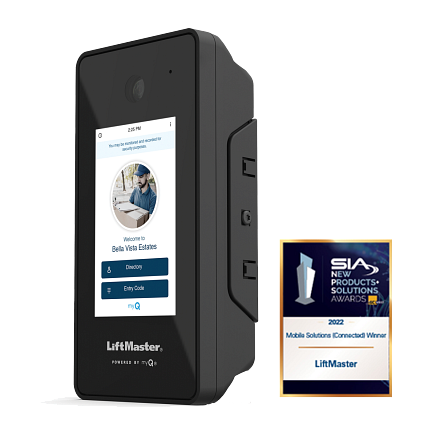

Smart Video Intercom

  • Designed specifically for smaller multi-tenant buildings and single family homes with a gate.
  • Provide your residents with peace of mind by allowing them to visually see guests and visitors before granting them access with the myQ Community app.
  • Using the myQ Community web portal, property owners have a simple effective way to manage resident access to the building without changing out front door keys every time.
  • Connects via Ethernet or WIFI for ease of installation.
Features
  • Stop Handing Out Keys – Eliminate keys and let residents use mobile credentials instead. That way, you can oversee everything from one centralized dashboard—including which residents are coming and going. From security to convenience, we can elevate your experience.
  • Watch Your Building 24/7 – The Smart Video Intercom – S lets you watch video live or later so you will always know what is happening at your front entrance. With motion-activated video feed and recording, plus Night Vision capabilities, you can see any shady activity at your property—and prevent or trace vandalism. It’s an affordable purchase that protects your investment.
Specifications
  • Outdoor Rating: IP54
  • Smartphone Control – Requires myQ Community App subscription
  • Local User Capacity: 500
  • Connectivity: Ethernet and WiFi
  • Display Type: 5” 720P high definition, fade-resistant touchscreen display with picture-in-picture
  • Dimensions: 8” x 4” x 2”
  • Operating Temperature: -4F to 122F (-20C to 50C)
  • Power Supply: 16VDC, 1A, 40W
  • Video: 1080p camera resolution, 25FPS; Phone.com VOIP subscription required
  • Field of View: 135 degrees
  • Warranty: Intercom Warranty 2 Years Operator Warranty
App

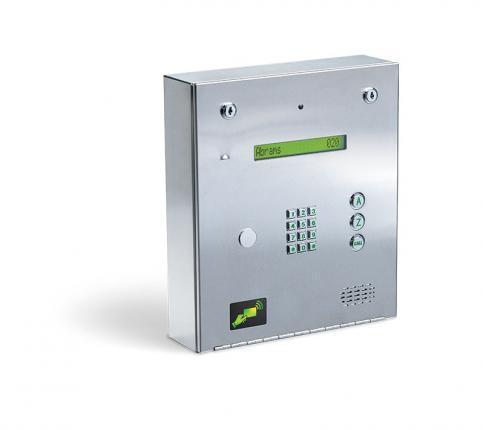

Telephone Entry System – For up to 3000 phone numbers and 2 access points.

The 1834 Series stores up to 3000 phone numbers and can control two (2) access points.  The 90 Series housing offers a streamlined look, has enhanced locking and weather sealing and provides easy internal installation of optional components such as a card reader*, LCD heater and TCP/IP adapter for a direct internet connection.  The 1834 is still available in the original 80 Series (surface and flush mount) housings.

*While a card reader can be installed in the 1834 cabinet, the 1834 does not have a card reader input.  This card reader would need to be connected to a seperate access controller.  If an integrated card reader is desired, look at the 1835 or 1837 systems.

Overview

The Model 1834 is an ideal telephone entry system suited for apartment and gated community applications as well as office buildings and industrial sites that have a separate access control system, or require telephone entry only. Each 1830 Series unit allows Voice and Data connection over either Cellular, VoIP, Wireless, or POTS. DKS offers easy ways to connect fast using the DKS IM Server and DKS Cellular services. The single-line LCD display features big 1/2-inch characters for easy viewing and your personalized message scrolls across the screen from right to left when the system is not in use. Our unique “One Touch” CALL button and big A and Z scroll buttons makes this system one of the easiest to use on the market today!

For additional security, the 1834 allows you to monitor activity AS IT HAPPENS on your computer display.  A card reader can be installed in the 1834 cabinet, however the 1834 has no card reader input and would require that the reader be connected to a seperate access control system.  To avoid this, see our model 1835 or 1837.

Features

The 1834 Telephone Entry System can be connected for voice and programming by any of these methods:

  • Cellular 4G-LTE service (note 1)
  • VoIP (note 2)
  • POTS – Plain Old Telephone Service (note 3)

Note 1: Requires DKS Cellular subscription and 1800-080 cellular adapter.  4G-LTE service provided by AT&T where available.

Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection.  1830-186 requires IM SERVER Client subscription.  VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.

Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection – using – IM Server Modem (subscription required).  DoorKing does not recommend using a POTS line for programming the telephone entry system.  DoorKing can no longer guarantee programming via POTS / modem as many phone company services and switches no longer support modem communications as these devices are considered to be obsolete.

  • Large easy to use A and Z scroll buttons.
  • One Touch “CALL” button.
  • Built-in single-line LCD directory display.
  • Programmable directory codes (1-4 digits).
  • 10 and 11-digit dialing capability.
  • Live Streaming.
  • Live transactions.
  • 8000 event transaction buffer.
  • Database import/export capability.
  • LED Lighting illuminates keypad.
  • Built-in clock/calendar.
  • Holiday schedule.
  • Hold open time zones.
  • Built-in postal lock provision.
Specifications
  • True Full Duplex Communication.
  • Stores up to 3000 telephone numbers and names (names are limited to 15 characters max).
  • Stores up to 255 area codes.
  • Transaction buffer stores last 8000 events.
  • 8 hold open time zones.
  • 4-digit entry codes, one for each telephone number.
  • 2 form “C” dry contact relays.
  • Single-line directory display uses super-twist LCD with 1/2-inch characters.
  • EEPROM memory chip.
  • 16 VAC, 20 VA power transformer supplied.
  • FCC (US): DUF6VT-12874-OT-T
  • DOC (CAN): 1736 4528 A
  • Compliant with UL 294.   ETL listed.

Dimensions90 Series: 14.75″ (375 mm) H x 12.75″ (324 mm) W x 3.75″ (95 mm) D.80 Series: Dimensions Surface Mount: 13″H x 11.25″W x 4.75″D. Dimensions Flush Mount: 13.25″H x 12″W x 3.25″D.

Telephone Entry System – For up to 48 entry points, including elevator control

The 1835 90 Series stores up to 3000 phone numbers and 8000 device codes and can be expanded to control up to 48 wired access points with optional Tracker Expansion boards (up to 24 wirelessly).  The 90 Series housing offers a streamlined look, has enhanced locking and weather sealing and provides easy internal installation of optional components such as a card reader, LCD heater and TCP/IP adapter for a direct internet connection.  The 1835 is still available in the original 80 Series (surface and flush mount) housings.

Overview

The Model 1835 is an ideal telephone entry system suited for apartment and gated community applications as well as office buildings and industrial sites.  Each 1830 Series unit allows Voice and Data connection over Cellular, Internet or a POTS (Plain Old Telephone Service) connection.  The single-line LCD display features big 1/2-inch characters for easy viewing and your personalized message scrolls across the screen from right to left when the system is not in use.   Our unique “One Touch” CALL button makes this system one of the easiest to use on the market today!   The built-in electronic directory, easy to use Remote Account Manager programming software, card reader interface and expandability options make this unit an ideal choice for those applications with a large number of system users and entry locations.   With Tracker expansion boards, up to 48 wired card readers (or 24 wirelessly) can be interfaced with the 1835 to provide access control.   Additionally, our elevator control module restricts which floors a guest or system users have access to, making it an ideal system for high rise buildings.

For additional security, the 1835 allows you to monitor activity AS IT HAPPENS on your computer display and with our anti-pass back memory, you can enable a TRUE anti-pass back system in one of three different configurations; passive, active and trap.

Features
  • The 1835 Telephone Entry & Access Control System can be connected for voice and programming by any of these methods:
  • Cellular 4G-LTE service (note 1)
  • VoIP (note 2)
  • POTS – Plain Old Telephone Service (note 3)

Note 1: Requires DKS Cellular subscription and 1800-080 cellular adapter.  4G-LTE service provided by AT&T where available.

Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection.  1830-186 requires IM SERVER Client subscription.  VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.

Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection – using the IM Server Modem (subscription required).  DoorKing does not recommend using a POTS line for programming the telephone entry system.  DoorKing can no longer guarantee modem connections as some phone company services and switches no longer support modem communications as these devices are considered to be obsolete.

  • Large easy to use A and Z scroll buttons.
  • One Touch “CALL” button.
  • Built-in single-line LCD directory display.
  • Programmable directory codes (1-4 digits).
  • 10 and 11-digit dialing capability.
  • Interfaces with 2 card readers – expandable to 48 with wired tracker expansion boards (or 24 wirelessly).
  • Live Streaming.
  • Live transactions.
  • Anti-pass back.
  • 8000 event transaction buffer.
  • 31 Security (permission) Levels – 29 Programmable (2 fixed levels).
  • Database import/export capability.
  • LED Lighting illuminates keypad.
  • Built-in clock/calendar.
  • Holiday schedule.
  • Hold open time zones.
  • Entry code time zones.
  • Built-in postal lock provision.
Specifications
  • True Full Duplex Communication.
  • Stores up to 3000 telephone numbers and names (names are limited to 15 characters max).
  • Stores up to 255 area codes.
  • Transaction buffer stores last 8000 events.
  • Stores up to 8000 device (card) codes.
  • 31 security (permission) levels, 29 programmable with 4 time zones each.
  • 8 hold open time zones.
  • Three anti-pass back configurations: passive, active and trap.
  • Elevator control (note 1) for up to 8 elevators, each serving 64 floors.
  • Expandable (note 2) to control up to 48 wired entry points (or 24 wirelessly).
  • 4-digit entry codes, one for each telephone number.
  • 3 form “C” dry contact relays.
  • Single-line directory display uses super-twist LCD with 1/2-inch characters.
  • EEPROM memory chip.
  • Two 16 VAC, 20 VA power transformers supplied.
  • FCC (US): DUF6VT-12874-OT-T
  • DOC (CAN): 1736 4528 A
  • Compliant with UL 294.   ETL listed.

Dimensions

  • 90 Series: 14.75″ (375 mm) H x 12.75″ (324 mm) W x 3.75″ (95 mm) D.
  • 80 Series: Surface Mount: 13″H x 11.25″W x 4.75″D. Flush Mount: 13.25″H x 12″W x 3.25″D.

Note 1: Requires Elevator Control Board(s).

Note 2: Requires Tracker Expansion Board(s).

Telephone Entry System w/ LCD Display – For up to 48 entry points, including elevator control

The 1837 90 Series stores up to 3000 phone numbers and 8000 device codes and can be expanded to control up to 48 wired access points with optional Tracker Expansion boards (up to 24 wirelessly).  The 90 Series housing offers a streamlined look, has enhanced locking and weather sealing and provides easy internal installation of optional components such as a card reader, LCD heater and TCP/IP adapter for a direct internet connection.  The 1837 is still available in the original 80 Series (surface and flush mount) housings.

Overview

The Model 1837 is an ideal telephone entry and access control system suited for medium to large apartment and gated community applications as well as office buildings and industrial sites.  Each 1830 Series unit allows for a Voice and Data connection over Cellular, VoIP, Internet or a POTS (Plain Old Telephone Service) connection.  The eight-line LCD display features big 1/2-inch characters for easy viewing and your personalized message appears on the screen when the system is not in use.   Our unique “One Touch” CALL button makes this system one of the easiest to use on the market today!   The built-in electronic directory, easy to use Remote Account Manager programming software, card reader interface and expandability options make this unit an ideal choice for those applications with a large number of system users and entry locations.   With tracker expansion boards, up to 48 wired card readers (up to 24 wirelessly) can be interfaced with the 1837 to provide access control.   Additionally, our elevator control module restricts which floors a guest or system users have access to, making it an ideal system for high rise buildings.

For additional security, the 1837 allows you to monitor activity AS IT HAPPENS on your computer display and with our anti-pass back memory, you can enable a TRUE anti-pass back system in one of three different configurations; passive, active and trap.

Features

The 1837 Telephone Entry & Access Control System can be connected for voice and programming by any of these methods:

  • Cellular 4G-LTE service (note 1)
  • VoIP (note 2)
  • POTS – Plain Old Telephone Service (note 3)

Note 1: Requires DKS Cellular subscription and 1800-080 cellular adapter.  4G-LTE service provided by AT&T where available.Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection.  1830-186 requires IM SERVER Client subscription. VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection – using IM Server Modem (subscription required).  DoorKing does not recommend using a POTS line for programming the telephone entry system.  DoorKing can no longer guarantee programming via POTS / modem as many phone company services and switches no longer support modem communications as these devices are considered to be obsolete.

  • Large easy to use A and Z scroll buttons.
  • One Touch “CALL” button.
  • Built-in eight-line LCD directory display.
  • Programmable directory codes (1-4 digits).
  • 10 and 11-digit dialing capability.
  • Interfaces with 2 card readers – expandable to 48 with wired tracker expansion boards (or 24 wirelessly).
  • Live Streaming.
  • Live transactions.
  • Anti-pass back.
  • 8000 event transaction buffer.
  • Elevator control – requires elevator control boards(s)
  • 31 Security (permission) Levels – 29 Programmable (2 fixed levels).
  • Database import/export capability.
  • Built-in clock/calendar.
  • Holiday schedule.
  • Hold open time zones.
  • Entry code time zones.
  • Built-in postal lock provision.
Specifications
  • True Full Duplex communication.
  • Stores up to 3000 telephone numbers and names (names are limited to 15 characters max).
  • Transaction buffer stores last 8000 events.
  • Stores up to 8000 device (card) codes.
  • 31 Security (permission) Levels, 29 programmable with 4 time zones each.
  • 8 hold open time zones.
  • Three anti-pass back configurations: passive, active and trap.
  • Elevator control (note 1) for up to 8 elevators, each serving 64 floors.
  • Expandable (note 2) to control up to 48 wired entry points (or 24 wirelessly).
  • 4-digit entry codes, one for each telephone number.
  • 3 form “C” dry contact relays.
  • Eight-line directory display uses super-twist LCD with 1/2-inch characters.
  • EEPROM memory chip.
  • 16 VAC, 20 VA and 16 VAC, 50 VA power transformers supplied.
  • FCC (US): DUF6VT-12874-OT-T
  • DOC (CAN): 1736 4528 A
  • Compliant with UL 294.   ETL listed.

Dimensions

  • 90 Series 14.75″ (375 mm) H x 12.75″ (324 mm) W x 3.75″ (95 mm) D.
  • 80 Series: Surface Mount: 13″H x 11.25″W x 4.75″D. Flush Mount: 13.25″H x 12″W x 3.25″D.

Note 1: Requires Elevator Control Board(s).

Note 2: Requires Tracker Expansion Board(s).

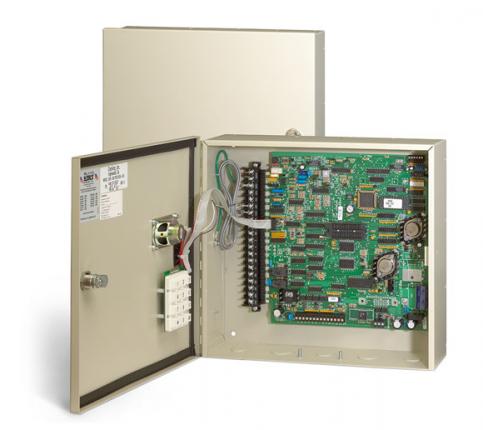

Multi-Door Access Controller

The 1838 Multi-door Access Controller is ideal for small businesses, office buildings, factories, industrial sites, apartment complexes, or for any application that requires access control and reporting capabilities. The 1838 is a 3000 user, 2-door Controller that easily expands to control up to 48 doors with wired Tracker Expansion Boards (or 24 wirelessly). This flexible System allows access control to 8000 Device Codes by means of Cards, Keypads, Wireless RF Transmitters, or with almost any 26-bit Wiegand Device. DKS Remote Call Stations can also be added to the 1838 to provide communication from an entry point to a designated phone.

Overview

The DKS 1838 multi-door access controller is ideal for small businesses, office buildings, factories, industrial sites, apartment complexes, or for any application that requires access control and reporting capabilities. The 1838 is a 2-door controller that easily expands to control up to 48 doors with wired tracker expansion boards (or 24 wirelessly). Each 1830 Series unit allows for a connection over Cellular, Internet or a POTS (Plain Old Telephone Service) connection. DKS offers easy ways to connect fast using the DKS IM Server and DKS Cellular services. This flexible system allows access control by means of encoded cards, five digit PINs, wireless RF control, or with almost any 26-bit wiegand device.

DKS remote call stations can also be added to the 1838 to provide communication from an entry point to a designated phone.

Features

The 1838 Access Controller can be connected for voice (were applicable) and programming by any of these methods:

  • Cellular 4G-LTE service (note 1)
  • VoIP (note 2)
  • POTS – Plain Old Telephone Service (note 3)

Note 1: Requires DKS Cellular subscription and 1800-080 cellular adapter.  4G-LTE service provided by AT&T where available.

Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter.  1830-186 requires IM SERVER Client subscription.

Note 3: Programming via several methods. Internet programming requires IM Server Modem subscription. DoorKing does not recommend using a POTS line to program the access system controller. DoorKing can no longer guarantee programming via POTS / modem as many phone company services and switches no longer support modem communications as these devices are considered to be obsolete.

  • Live Streaming.
  • Live Transactions
  • Built-in programming keypad.
  • Interfaces with 2 card readers – expandable to 48 with wired tracker expansion boards (24 wirelessly).
  • Anti-pass back.
  • 8000 event transaction buffer.
  • 31 Security (permission) levels.
  • Database import/export capability.
  • Built-in clock/calendar.
  • Holiday schedule.
  • Hold open time zones.
  • Entry code time zones.
  • Postal lock input.
Specifications
  • Stores up to 3000 user names.
  • Stores up to 255 area codes.
  • Transaction buffer stores last 8000 events.
  • Stores up to 8000 access card codes – dependent on system memory.
  • 31 security (permission) levels, 29 programmable with 4 time zones each.
  • 8 hold open time zones.
  • Three anti-pass back configurations: passive, active and trap.
  • Elevator control (note 1) for up to 8 elevators, each serving 64 floors.
  • Expandable (note 2) to control up to 48 wired entry points (24 wirelessly).
  • 4-digit entry codes, one for each telephone number.
  • 3 form “C” dry contact relays.
  • EEPROM memory.
  • Two 16 VAC, 20 VA power transformers supplied.
  • FCC (US): DUF6VT-12874-OT-T
  • DOC (CAN): 1736 4528 A
  • Compliant with UL 294.   ETL listed.
  • Dimensions: 10.25″H x 12.25″W x 4.25″D.

Note 1: Requires Elevator Control Board(s).

Note 2: Requires Tracker Expansion Board(s).

Options: Tracker expansion boards, elevator control boards.

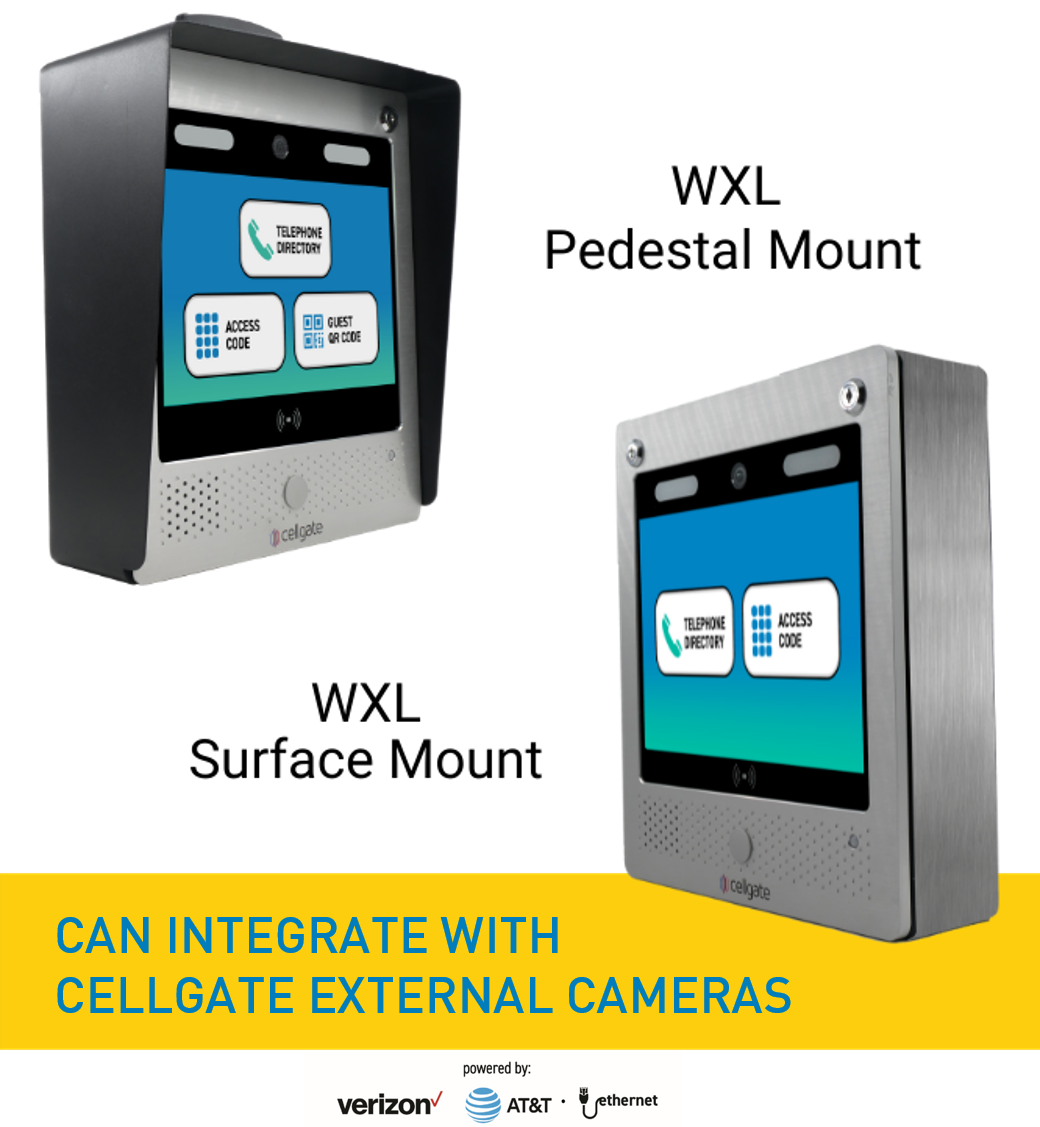

Advanced Telephone Entry with Live Streaming Video

With live streaming video, a bright, high contrast 8″ color touchscreen, QR code visitor management and SmartScreen call management, the W480 provides an impressive end user experience while simultaneously giving multi-family properties unique tools to manage access control. The Watchman W480 is available in both cellular and hard-wired internet versions, and can integrate with up to three CellGate external cameras.

Features
  • Streaming cellular or internet video telephone entry
  • Brilliant 8” color touchscreen
  • Verizon or AT&T LTE service, ships with both SIM cards – No VoIP fees required
  • Integrates with up to 3 external cameras
  • Calls up to 6 app video contacts and 3 voice-only numbers per directory listing
  • Voice Mail Intelligence – VMI System ignores voice mail and continues call group
  • Built-in HID card reader
  • 1 native 26-bit Wiegand expansion port
  • 10,000 local codes and 64,000 non-local codes
  • Prop open notification if gate is left open more than 3 minutes
  • Integrates with any CellGate product through TrueCloudTM
Video & Voice
  • A property’s residents can receive live streaming video of their visitors at the gate, and grant them access from their smart phone. Better security; residents can simultaneously see and speak to visitors.
  • Full voice call functionality from the gate. Voice calls allows residents to screen visitor prior to granting access.
  • Residents can receive voice calls from visitors at the gate. Allows residents without smart phones to grant access via voice call instead of via streaming video/app; residents that are roaming and don’t have bandwidth to receive a video call are also able receive a voice call instead.
  • System can auto-call up to 6 app video contacts and 3 voice only numbers in 3 tiers. Increases the likelihood your visitor reaches someone upon visiting; most competitor systems can only call one number per directory listing.
  • VMI – VoiceMail Intelligence.  System recognizes when a voice call reaches voice mail instead of a live person, and moves on to the next number on the call list. Ensures a visitor at the gate can reach a live person. No stranded visitors.
Application
  • Download the Cellgate app:
  • App can be used to view live streaming video and grant access to visitors. Higher level of security in visitor management.
  • Designated user(s) can control gate, other property entry points and camera(s) remotely from an app. Ultimate convenience; means the system can be controlled from anywhere.
  • Push notifications with photos can be sent on all access attempts to designated user(s). Better security, know instantly who came/went on a property, and when.
  • Prop open notification: gate/door sensor notifies designated user(s) if gate has been left open longer than 3 minutes. Better security, gate cannot be left open inadvertently.
  • Residents can issue visitor QR codes and/or manage their own call groups from the app, if the property manager has granted them these capabilities. Allows residents to self-manage needs.
  • CellGate app works on both iOS and Android smart phones. Works with majority of smart phones.
Hardware
  • Brilliant 8” color touchscreen. Larger, brighter, higher-contrast screen for improved user experience and performance in direct sunlight.
  • Up to 1,500 directory listings. Will work at multi-family property of all sizes.
  • Full numeric keypad – up to 10,000 local codes and 64,000 non-local codes. Unique access codes can be provided to visitors on a long term, limited use window or temporary use basis, and can be set up by designated users in < 60 seconds via the TrueCloud™ web portal.
  • Includes one Wiegand 26-bit input. Ideal for pedestrian gates, card readers, keypads or wireless remotes.
  • Built-in camera allows for live streaming video of visitors at the gate and captures still pictures when someone utilizes the keypad, calls to gain access, or can be taken on demand via the Cellgate app (only by designated user(s)).   Better security—video and/or photos allow tenants to visually confirm a visitor before granting access.
  • Built-in HID card reader. Can be used with properties that provide RFID/proximity cards to tenants.
  • Pedestal mount or recessed mount options on W480 model.  Hardware dimensions for the W480 are Height: 11.9″, Width: 6.1″, Depth: 4.7″. Aesthetics – select the option ideal for the install environment.
  • QR code visitor management Visitors can receive QR code invites with restricted date/time access on their smart phones.
  • SmartScreen call management Customizable touch screen call options, for improved visitor management.
  • (Optional) Up to 3 add-on external cameras to capture secondary views. Allows property management to capture visitor photos from a 2nd angle, to capture vehicle details, license plate info, etc.
  • (Optional) Integrates with Watchman WXP Wiegand Expansion Panel. Expands entry point management at gate or other access points on the property.  All entry points at a property using fobs/card readers (ex. clubhouse/pool gate/fitness center) can be controlled.
  • (Optional) Solar power kit available. Allows for use in environments where traditional electric power is n/a.
Portal
  • Entire system can be managed through the TrueCloud™ web portal, hosted by Microsoft Azure. Simple, robust administration.  New users, call trees, access codes, scheduled openings/closures, photos, and access attempt time & date details can all be set up/reviewed via the TrueCloud™ web portal.
  • Multiple user tier levels available for varied user and administration management needs. Allows the administrator to provide only the system functionality each designated user really needs.
  • Programmatic resident enrollment process and import tools. Makes system setup simple.
  • Ability to ignore facility codes on uploads. Makes transferring data from an existing system to new W480 system simple.
  • Multiple locations can be managed via a single login. Simple administration of multiple properties.

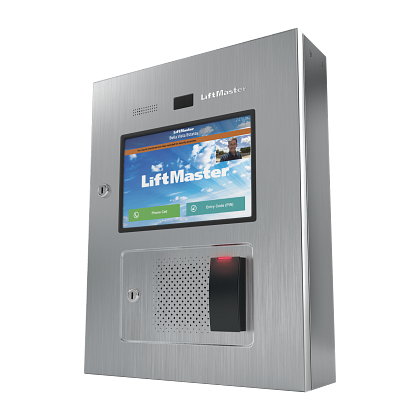

Smart Video Intercom – M

  • Make a great first impression with this scalable cloud-based smart access system.
  • Integrated video camera with 135⁰ view.
  • Control multiple entry points from a single dashboard with myQ® Community.
  • myQ Community app lets residents see who’s at the entrance before granting access.
  • Controls up to 2 gates and/or doors.
Features
  • Customized System Control with myQ® Community Web Platform. myQ Community web platform streamlines tenant information management, enhancing property manager productivity and resident experience through an integration partnership with RealPage, Yardi, Entrata, and more.
  • Intuitive Fade-Resistant High-Definition Color Touch Display. Navigation is intuitive and screen has picture-in-picture.
  • No Need to Dig Up Driveway or Yard. Eliminates trenching with a wireless link to UL 325 LiftMaster® gate operators with new firmware 4.2.
  • Configurable Email Notifications. Know when codes are overused or if service is needed for any Smart Video Intercom, Smart Controller or gate operator connected to myQ Community.
  • Cloud-Based Security. Two factor authentication protects and safeguards residents’ information and conforms with the requirements of ISO/IEC 27001:2013.
  • myQ® Community App. Residents can visually identify guests at the entrance and grant / deny access from their smartphone. They can also unlock any authorized entrance or share virtual guest passses with the app at any time.
  • Subscription and Storage. All LiftMaster Smart Access Solutions require a monthly subscription to myQ Community.
Specifications

Construction

  • 7”, 720p high-definition, fade-resistant touchscreen display with picture-in-picture
  • Compatible Wiegand Input formats: 26 Bit, 30 Bit, 37 Bit (HID), 37 Bit (Transcore), and 32 Bit (MiFare)
  • No facility code limitations (1–256 for 26 Bit); “Ignore Facility Code” option available
  • Postal Lock Provision
  • UL 294® Listed
  • 2 year warranty
  • Mounting: surface, flush mount or pedestal mount (PED42, PED64)

Dimensions

  • CAPXM: 17” x 6.125” x 4” P CAPXMTK Two options:
    • Standard Trim Kit (CAPXM flush mount): 20.31”x 9.4” and Larger Trim Kit: 20.31”x 13.4”

Video

  • Camera resolution: 1080p
  • Frames per second: 25 FPS
  • Directional Field of view: 135°
  • Storage: up to 1000 events locally and in the cloud P Phone.com® service required for VoIP and video calls (additional charges apply)

Voice

  • DSP, clear, unparalleled audio communications in noisy environments
  • VoIP phone service; calls 10-digit numbers P Phone.com® service required for VoIP (additional charges apply)

Power

  • 24VDC,60W(min.),class 2 output, Level VI efficiency, (power supply input 120VAC, 2A 50/60Hz)
  • Power supply included) Operating Temperatures
  • -20°F to 130°F (-29°C to 54°C)
  • Built-In Security+ 2.0® Radio Onboard
  • Integrated Passport Receiver with Security+ 2.0
  • Input Ports (2 Independent Doors of Control per CAPXM)
  • 2 Wiegand Inputs
  • 2 Request-to-Exit (REX) Inputs P 2 Supervised Inputs

Outputs* (2 Independent Doors of Control per CAPXM) P 2 Primary Relays and 2 Auxiliary Relays

  • 12 VDC, 250mA power output for Wiegand devices
  • 1 Wiegand (26 Bit) output for elevator or enterprise access control integration
  • Controls 2 gates/doors; wirelessly link LiftMaster UL 325 gate operators, (mfd. after October 2017); no need to trench
    • * SPDT, Rated load 3 amps at 30VDC (each)

Codes & Capacities

  • 4 to 8 digit entry codes; 4 to 6 digit directory codes P 50,000 local user capacity per unit
  • 50,000 local event history per unit
  • Holiday and hold-open scheduling, including one-time and repeating exceptions

Communication

  • Internet via wired Ethernet 10/100 (DHCP, static configuration), or Wi-Fi (DHCP configuration only)
  • Cellular-based Internet not recommended for applications with video features
  • Dedicated video bandwidth per CAPXM: Recommend a minimum upload bandwidth of 5Mbps. This upload speed should be met when considering usage of other devices on the network like cameras and computers.

Shipping Weight(1 Carton – 219” x 7” x 8”): 11 lbs. Includes: 24VDC power supply, gasket set, 2 keys, misc. hardware, manualAccess Data Management

  • myQ Community app subscription plan required per community
  • 30 days video storage and additional myQ Community app licenses are powerful, optional add-ons
App

Advanced Telephone Entry with Live Streaming Video

Featuring the largest color touchscreen available in cellular access control, the Watchman WXL appeals to sophisticated multi-family property owners that appreciate modern aesthetics and a state-of-the-art user experience.Residents love receiving streaming video calls of visitors on their smart phones, while property managers celebrate the user-friendly administration portal, QR code visitor management, Smart Screen call management, and that it is available in both cellular and hard-wired ethernet models.

Features
  • Streaming cellular or internet video telephone entry
  • Brilliant 11” color touchscreen
  • Verizon or AT&T LTE service, ships with both SIM cards No VoIP fees required
  • Integrates with up to 3 external cameras
  • Calls up to 6 app video contacts and 3 voice-only numbers per directory listing
  • Voice Mail Intelligence – VMI System ignores voice mail and continues call group
  • Built-in HID card reader
  • Built-in postal lock
  • 30,000 local codes and 64,000 non-local codes
  • Prop-on notification if gate is left open more than 3 minutes
  • Integrates with any Cellgate product through TrueCloudTM
Video & Voice
  • A property’s residents can receive live streaming video of their visitors at the gate, and grant them access from their smart phone. Better security; residents can simultaneously see and speak to visitors.
  • Full voice call functionality from the gate. Voice calls allows residents to screen visitor prior to granting access.
  • Residents can receive voice calls from visitors at the gate. Allows residents without smart phones to grant access via voice call instead of via streaming video/app; residents that are roaming and don’t have bandwidth to receive a video call are also able receive a voice call instead.
  • VMI – Voice Mail Intelligence. Watchman WXL recognizes when a voice call reaches voice mail instead of a live person, and moves on to the next number on the call list. Ensures a voice caller at the gate can reach a live person – no stranded visitors.
Application
  • Download the Cellgate app:
  • App can be used to view live streaming video and grant access to visitors. Higher level of security in visitor management.
  • Designated user(s) can control gate, other property entry points and camera(s) remotely from an app. Ultimate convenience; means the system can be controlled from anywhere.
  • Push notifications with photos can be sent on all access attempts to designated user(s). Better security, know instantly who came/went on a property, and when.
  • Prop open notification: gate/door sensor notifies designated user(s) if gate has been left open longer than 3 minutes. Better security, gate cannot be left open inadvertently.
  • CellGate app works on both iOS and Android smart phones. Works with majority of smart phones.
  • System can auto-call up to 6 app video contacts and 3 voice only numbers in 3 tiers. Increases the likelihood your visitor reaches someone upon visiting; most competitor systems can only call one number per directory listing.
Hardware
  • Brilliant 11” color touchscreen. Provides a user-friendly visitor experience; easier viewing at night or in low light environments, and easier for more mature visitors to read without reading glasses.
  • Hardware Dimensions: 14.75″ height, 12.75″ width, 3.75″ depth. Large enough for outstanding visitor visibility and user experience, compact enough to be utilized in existing legacy system locations.
  • QR Code Visitor Management. Visitors can receive QR code invites with restricted date/time access on their smart phones.
  • SmartScreen Call Management. The WXL home screen can be configured to provide from 1 to 4 press-to-call icons. The “Resident Directory”, “QR Code” and “Access Code” icons are available as required. These icons can be configured for use (or not) depending on a property’s visitor management call function requirements.  One specific press-to-call icon can also be configured for direct dial for options like, but not limited to, “Leasing Office,” “Deliveries,” or “Security.”
  • Up to 3,000 directory listings. Will work at multi-family property of all sizes.
  • Full numeric keypad – up to 30,000 local codes and 64,000 non-local codes.  Unique access codes can be provided to visitors on a long term, limited use window or temporary use basis, and can be set up by designated users in < 60 seconds via the TrueCloud™ web portal.
  • Can be ordered with one, two or three Wiegand 26-bit inputs, depending on property’s needs. Ideal for pedestrian gates, card readers, keypads or wireless remotes.
  • Built-in camera allows for live streaming video of visitors at the gate and captures still pictures when someone utilizes the keypad, calls to gain access, or can be taken on demand via the Cellgate app (only by designated user(s)).    Better security—video and/or photos allow tenants to visually confirm a visitor before granting access.
  • Built-in HID card reader. Can be used with properties that provide RFID/proximity cards to tenants.
  • Available with postal lock. Allows postal workers to access property with one of their universal keys.
  • (Optional) Up to 3 add-on external cameras to capture secondary views. Allows property management to capture visitor photos from a 2nd angle, to capture vehicle details, license plate info, etc.
  • (Optional) Integrates with Watchman WXP Wiegand Expansion Panel. Expands entry point management at gate or other access points on the property.  All entry points at a property using fobs/card readers (ex. clubhouse/pool gate/fitness center) can be controlled.
  • (Optional) Solar power kit available. Allows for use in environments where traditional electric power is n/a.
Portal
  • Entire system can be managed through the TrueCloud™ web portal, hosted by Microsoft Azure. Simple, robust administration.  New users, call trees, access codes, scheduled openings/closures, photos, and access attempt time & date details can all be set up/reviewed via the TrueCloud™ web portal.
  • Multiple user tier levels available for varied user and administration management needs. Allows the administrator to provide only the system functionality each designated user really needs.
  • Programmatic resident enrollment process and import tools. Makes system setup simple.
  • Ability to ignore facility codes on uploads. Makes transferring data from an existing system to new Watchman XL system simple.
  • Multiple locations can be managed via a single login. Simple administration of multiple properties.

Smart Video Intercom – L

  • Make a great first impression with this scalable cloud-based smart access system.
  • Integrated video camera with 135⁰ view.
  • Control multiple entry points from a single dashboard with myQ® Community.
  • myQ Community app lets residents see who’s at the entrance before granting access.
  • Controls up to 4 gates and/or doors.
Features
  • Easy to Use Display Navigation is intuitive and screen has picture-in-picture with a customizable background.
  • myQ Community App Residents can visually identify guests at the entrance and grant / deny access from their smartphone. They can also unlock any authorized entrance or virtually send guest passes with the app at any time.
  • Remote Programming and activity monitoring using myQ® Community web platform.
  • Configurable Email Notifications Know when codes are overused or if service is needed for the Smart Video Intercom (CAPXLV, CAPXM), Smart Access 2-Door Controller (CAP2D), or gate operator.
  • No Need To Dig Up Driveway or Yard with Wi-Fi® and wireless link to UL 325 LiftMaster Gate Operators with new firmware 4.2
  • Customized System Control with myQ® Community Web Platform myQ Community web platform streamlines tenant information management, enhancing property manager productivity and resident experience through an integration partnership with RealPage, Yardi, Entrata, and more.
  • Modern, Durable Design Elegant stainless steel brushed finished front.
  • Entry Even When the Internet is Down Local system memory allows entry even when the internet is down.
  • Real-Time Activity Tracking and Alerts for example, when a suspended code is used or if an active code is being overused.
  • Keeps Data Protected and safeguards resident information with Cloud-Based Security.
  • Rugged, Durable Touchscreen Fade and glare resistant, 10” full-color, high-resolution intuitive touchscreen.
  • Data Storage Video services provide a live stream from an entrance, through myQ Community Control, and capture video clips for every access event; can be stored locally or in the cloud.
  • Voice Over IP (VoIP) provides digital call quality with no long-distance charges.
  • Multiple Ways to Connect to myQ® Community.
    • Wi-Fi
    • Cellular
    • Wired High-Speed
    • DSL
Specifications

Construction

  • 10”, 720p high-definition, fade and glare-resistant touchscreen display with picture-in-picture
  • Compatible Wiegand Input formats: 26 Bit, 30 Bit, 37 Bit (HID), 37 Bit (Transcore), and 32 Bit (MiFare)
  • No facility code limitations (1–256 for 26 Bit); “Ignore Facility Code” option available
  • Postal Lock Provision
  • UL 294® Listed
  • 2 year warranty
  • Mounting: surface, flush (CAPXLTK) or pedestal mount (PED42, PED64)

Dimensions

  • CAPXLV: 18” x 14” x 4.5”
  • CAPXLTK (Trim Kit): 23.75“ x 19.375“

Video

  • Camera resolution: 1080p
  • Frames per second: 25FPS
  • Field of view: 135°
  • Storage: up to 1000 events locally and in the cloud P Phone.com® service required for VoIP and video calls (additional charges apply)

Voice

  • DSP, clear, unparalleled audio communications in noisy environments
  • VoIP phone service; calls 10-digit numbers
  • Phone.com® service required for VoIP (additional charges apply)

Power

  • 24VDC,60W(min.), class 2 output, Level VI efficiency, (power supply input 100‐240VAC, 2A 50/60Hz)
  • Power supply included Operating Temperatures
  • -20°F to 130°F (-29°C to 54°C) Built-In Security+ 2.0® Radio Onboard
  • Integrated Passport Receiver with Security+ 2.0

Input Ports (4 Independent Doors of Control per CAPXLV)

  • 4 Wiegand Inputs
  • 4 Request-to-Exit (REX) Inputs
  • 4 Supervised Inputs
  • 1 Auto-Call Input (requires LPEXP)

Outputs* (4 Independent Doors of Control per CAPXLV) P 4 Primary Relays and 4 Auxiliary Relays

  • 12 VDC, 250mA power output for Wiegand devices
  • 1 Wiegand (26 Bit) output for elevator or enterprise access control integration
  • Controls 4 gates/doors; wirelessly link LiftMaster UL 325 gate operators, (mfd. after October 2017); no need to trench
  • * SPDT, Rated load 3 amps at 30VDC (each)

Codes & Capacities

  • 4 to 8 digit entry codes; 4 to 6 digit directory codes P 50,000 local user capacity per unit
  • 50,000 local event history per unit
  • Holiday and hold-open scheduling, including one-time and repeating exceptions

Communication

  • Internet via wired Ethernet 10/100/1000 (DHCP, static configuration), or Wi-Fi (DHCP configuration only)
  • Cellular-based Internet (CAPCELL) not recommended for applications with video features
  • Dedicated video bandwidth per CAPXLV: Recommend a minimum upload bandwidth of 5Mbps. This upload speed should be met when considering usage of other devices on the network like cameras and computers.

Shipping Weight (1 Carton – 23” x 18” x 9”): 24 lbs.Includes: 24VDC power supply, gasket set, 2 keys, radio antenna, Wi-Fi antenna, misc. hardware, manualAccess Data Management

  • myQ Community subscription plan required per community
  • 30 days video storage and video licenses are powerful, optional add-on’s
App
